EN Biosafety Class II, Type A2 – Metal Version

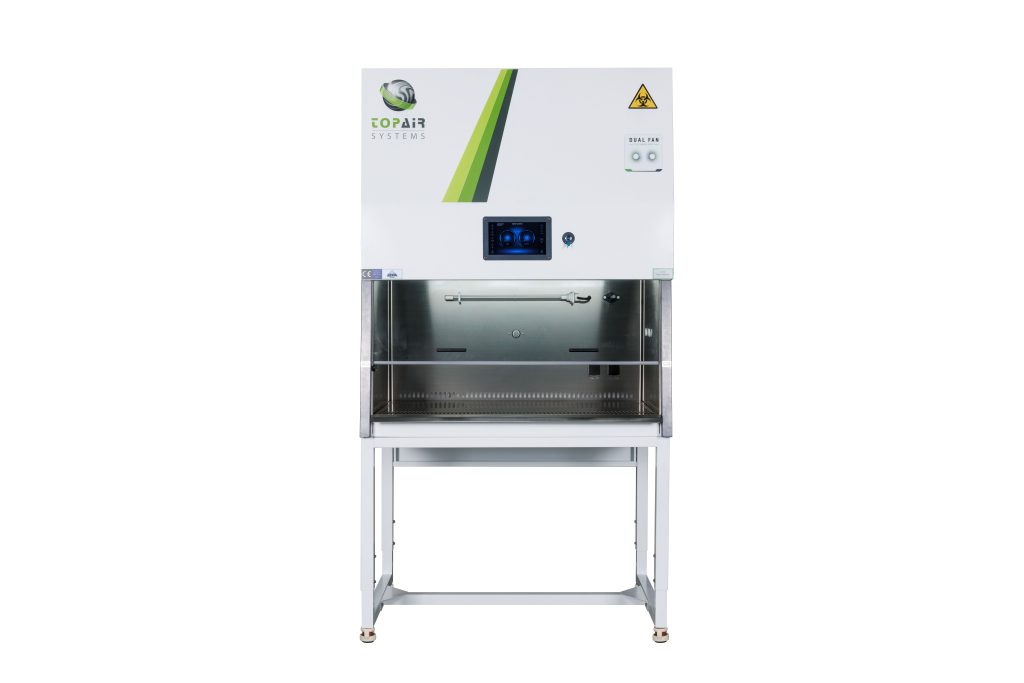

TopAir’s Class II, Type A2 Biological Safety Cabinet protects lab staff, the environment and sensitive work processes in which biological agents are applied. The cabinet offers a high level of contamination protection, based on two advanced HEPA H14 99.9995% @ 0.3 µm filters and features an airflow pattern of 70% downflow and 30% exhaust.
The cabinet is made of robust, epoxy coated metal structure with SS304 internals. The cabinet is operated using an elegant 10.1” intuitive touch screen control system that provides all of the device’s status information and alerts for unsafe critical conditions and
periodic maintenance reminders. The cabinet is CE certified and complies with EN 12469.
Structure:
- Metal is epoxy coated
- Internal lining is SS304, including the retractable one piece
worktop with spill tray - Front window of 6 mm triplex safety glass with manual
counterweight system
Show all
Features
EN Biosafety Class II, Type A2 – Metal Version
Models
| Spec/ Model | BO-090-ME | BO-120-ME | BO-150-ME | BO-180-ME | |
|---|---|---|---|---|---|
| Outer Dimensions W x D x H | 915 x 800 x 1450 mm 36 x 31.5 x 57″ |
1220 x 800 x 1450 mm 48 x 31.5 x 57″ |
1525 x 800 x 1450 mm 60 x 31.5 x 57″ |
1830 x 800 x 1450 mm 72 x 31.5 x 57″ |
|
| Workspace (W x D x H) | 830 x 620 x 650 mm 32.6*24.4*25.6 |
1135 x 620 x 650 mm 44.7 * 31.5 * 57″ |
1440 x 620 x 650 mm 56.7 * 31.5 * 57″ |
1745 x 620 x 650 mm 68.5 * 31.5 * 57″ |
|
| Front Sash | Clear visibility 550 mm / 21.7″, max open 17.7″ (450 mm)- working height 8” (200mm) | ||||
| Certifications | CE / In Accordance with EN 12469 | ||||
| Control system | Microprocessor controlled with 10.1 full touch screen, air velocity monitoring, alarm, sash alarm, UV control, lights control, electric outlets control, multilingual, metric, and imperial. IPMS monitoring Optional | ||||
| Downflow Velocity | 0.33 m/s, 66 fpm | ||||
| Inflow velocity | 0.5 m/s, 100 fpm | ||||
| Airflow pattern | 70% circulation, 30% exhaust | ||||
| Cleanliness level | Class 100/ISO 5 | ||||
| Hood Material | Oven-treated epoxy coated 16-gauge chemical-resistant, (1.5 mm) CRCA Galvanized metal sheet epoxy-coated metal 304 stainless steel interior. | ||||
| Adjustable Stand Height Range | 70/80/90 cm, 27.5/31.4/35.4″ | ||||
| Power Supply | 115 / 230 V, 50/60 Hz, Single phase | ||||
| Noise Level (Tested 20 cm/8″ from worktable, 1.2m/48″ above ground) | <56dB | <62dB | <63dB | <63dB | |
| Illumination | 1000 LUX, Eco-friendly LED lighting, Germicidal UV light 254 nm | ||||
| Filters | HEPA H14 Efficiency 99.9995%@ 0.3 μm | ||||
