Integrated Particles Monitoring System for Biosafety Cabinet: IPMS
TopAir Systems introduces the revolutionary IPMS – a biosafety cabinet with an integrated particles detection system.
The IPMS measures particle concentration in real time, monitoring the cleanliness level 24/7. Its display clearly indicates whether or not the cleanliness level complies with
ISO-5, and alerts when the workspace has been contaminated and needs to be serviced.
Its smart algorithm processes data provided by an advanced built-in sensor, and displays a reliable outcome.
IPMS provides critical real-time information on the air quality within the workspace, prevents cross-contamination, and ensures constant, full standard compliance.
It is an unprecedented solution that can transform the future of biological processes in the industry. Previously, in order to meet ISO-5 cleanliness level standard in the workspace, companies either tested the hood with an external particle counter every few months; or sourced a large, expensive particle counter for daily testing. TopAir Systems’ Integrated Particles Monitoring System (IPMS) offers the game- changing advantage of constant cleanliness monitoring with an integrated mechanism.
Control System Features
- Cleanliness indicator – Built-in particle sensor with display of ISO-5 cleanliness in the workspace

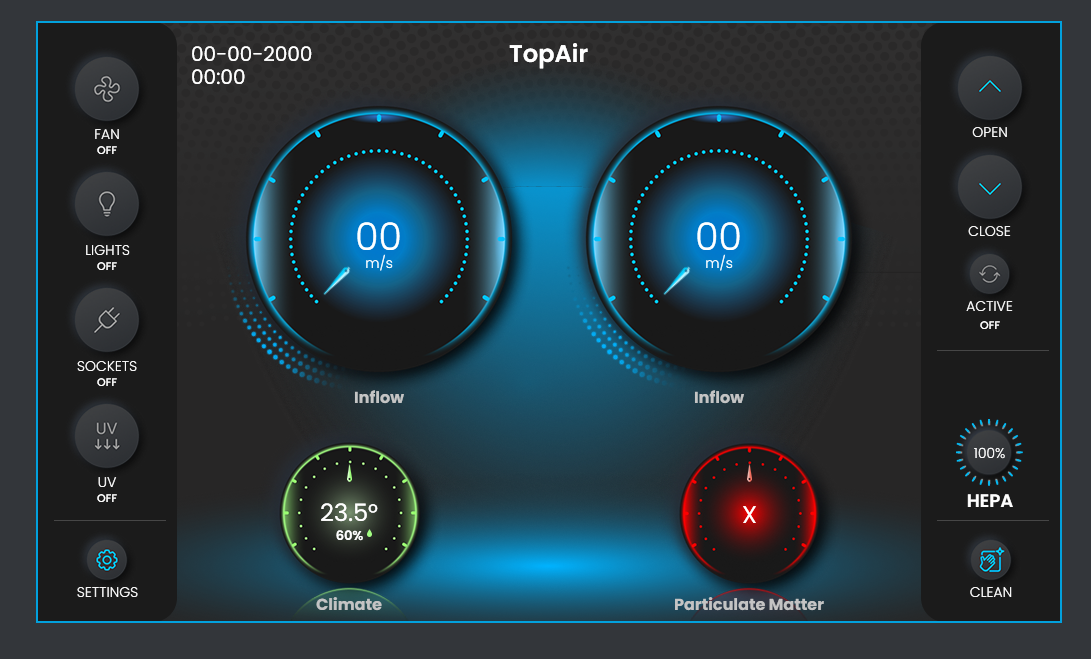

- 10.1” color touch screen with advanced graphic display
- Interface Type – 24-bit RGB
- Display Format – RGB 600*1024 pixels
- Program updates – User friendly self-program update system
- Power saving – Dark screen mode when all functions are off
- Accessibility & safety – Red light safety alarm for major faults
- Core Size – 32-Bit Single-Core
- Speed- 216MHz
- RAM Size – 320K x 8
- Advanced particle sensor with smart algorithm
- Timers – Visual countdown filter replacement, UV, etc.
- Accurate temperature and humidity display
- Languages – English, French, Spanish
- Clickable Icon for cleaning the screen
|External size W x D x H||1020 x 830 x 1500 mm
40.2″” X 32.7″” X 59··
|1320 x 830 x 1500 mm
52″” X 32.7″” X 59··
|1620 x 830 x 1500 mm
63“” X 32.7″” X 59··
|1920 x 830 x 1500 mm
75.6″ X 32.7·· X 59··
|Workspace [W X D X H]||900 x 660 x 710 mm
35.4″” X 26″” X 28″”
|1200 x 660 x 710 mm
47.2“” X 26″” X 28″”
|1500 x 660 x 710 mm
59·· X 26″” X 28″”
|1800 x 660 x 710 mm
70.9″” X 26″” X 28″“
|Sliding front sash||6 mm tempered glass
Clear visibility -23″” [580mm] / Sash max opening-18.9“” [480 mm] / Working height – 3·· [200mm]
|Certification||NSF 49 compatible|
|Control||10.1 user friendly full touch microprocessor control, multilingual, metric and imperial|
|Airflow||70% circulation/30% exhaust, downflow-66 FPM [0.33 ms]/ inflow-100 fpm [0.5 ms]|
|Filters||ULPA U15 efficiency ra99.9995% ra 0.1 um|
|Cleanliness level||Class 100/1S0 5|
|Safety||Dual air velocity sensor and alarm [chamber red light], particle contamination alarm [red light ], sash alarm, filter alarm, UV replacement, periodic service alarm|
|Hood material||Epoxy coated metal structure.
304 stainless steel lnterior. Option for 316 stainless steel
|Adjustable stand height||70/80/90 cm including anti-vibration leveling legs and casters Optional: motorized height adjustment, heavy-duty stand|
|Noise – per EN-12469||<52dB||<52dB||<54dB||<60dB|
|UV with interlock||Waterproof 254nm 25w||Waterproof 254nm 25w||Waterproof 254nm 50w||Waterproof 254nm 50w|
|Lights||Eco-friendly LED lighting average > 1000 LUX / Chamber red light alarm|
