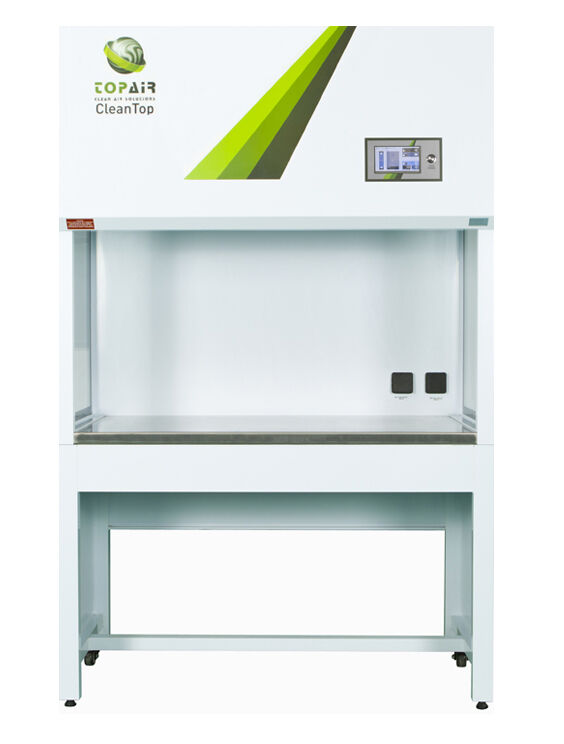

Eco Polypropylene Vertical Laminar Clean Bench

TopAir provides cost effective Vertical Laminar Clean
Benches. Clean benches are designed to supply a clean
controlled work environment meeting a Class 100/ISO
5 Cleanliness level. The clean bench is tested according
to USA Federal Standard 209E/ISO 14644-1/CE.
TopAir’s clean benches draw air from the room or hall
space, pass it through a HEPA filter using a fan,
and then distribute the clean air across the bench area.
In vertical benches, the filtered air is directed
downwards through a filter installed at the top of the
bench.

Structure:

8 mm welded Polypropylene with high chemical
resistance
Polypropylene worktop

Show all

Features

Download product datasheet

CE - LAMINAR CLEAN BENCH

Eco Polypropylene Vertical Laminar Clean Bench

Models

Spec/ Model	ECO-HC-V090-PP	ECO-HC-V120-PP	ECO-HC-V150-PP	ECO-HC-V180-PP
Outer Dimensions W x D x H	35.4 x 21.9 x 43.5” 900 x 558 x 1105 mm	47.2 x 21.9 x 43.5” 1200 x 558 x 1105 mm	59 x 21.9 x 43.5” 1500 x 558 x 1105 mm	70.8 x 21.9 x 43.5” 1800 x 558 x 1105 mm
WE CAN CUSTOMIZE ANY SIZE – EVEN A SINGLE UNIT! CONTACT US FOR DETAILS
Workspace (W x D x H)	34.6 x 17.7 x 24” 880 x 450 x 600 mm	46.4 x 17.7 x 24” 1180 x 450 x 600 mm	58.26 x 17.7 x 24” 1480 x 450 x 600 mm	70 x 17.7 x 24” 1780 x 450 x 600 mm
Test Standard	USA Federal Standard 209E / ISO-14644-1, CE
Air Velocity m/s	0.33 m/s, 66 fpm
Cleanliness in Workstation	Class-100 (FS 209E) ISO-5, IOS-14644-1
Hood Material	Polypropylene
Worktop Material	Polypropylene
Noise Level (Tested 20 cm from worktop, 1.2 m / 48″ above ground)	<52dB	<54dB	<56dB	<56dB
Power Supply	110 / 220 V, 50/60 Hz, Single phase
Illumination	600 lux LED lighting
Filters	HEPA Filter Efficiency of 99.9995% at 0.3 microns
