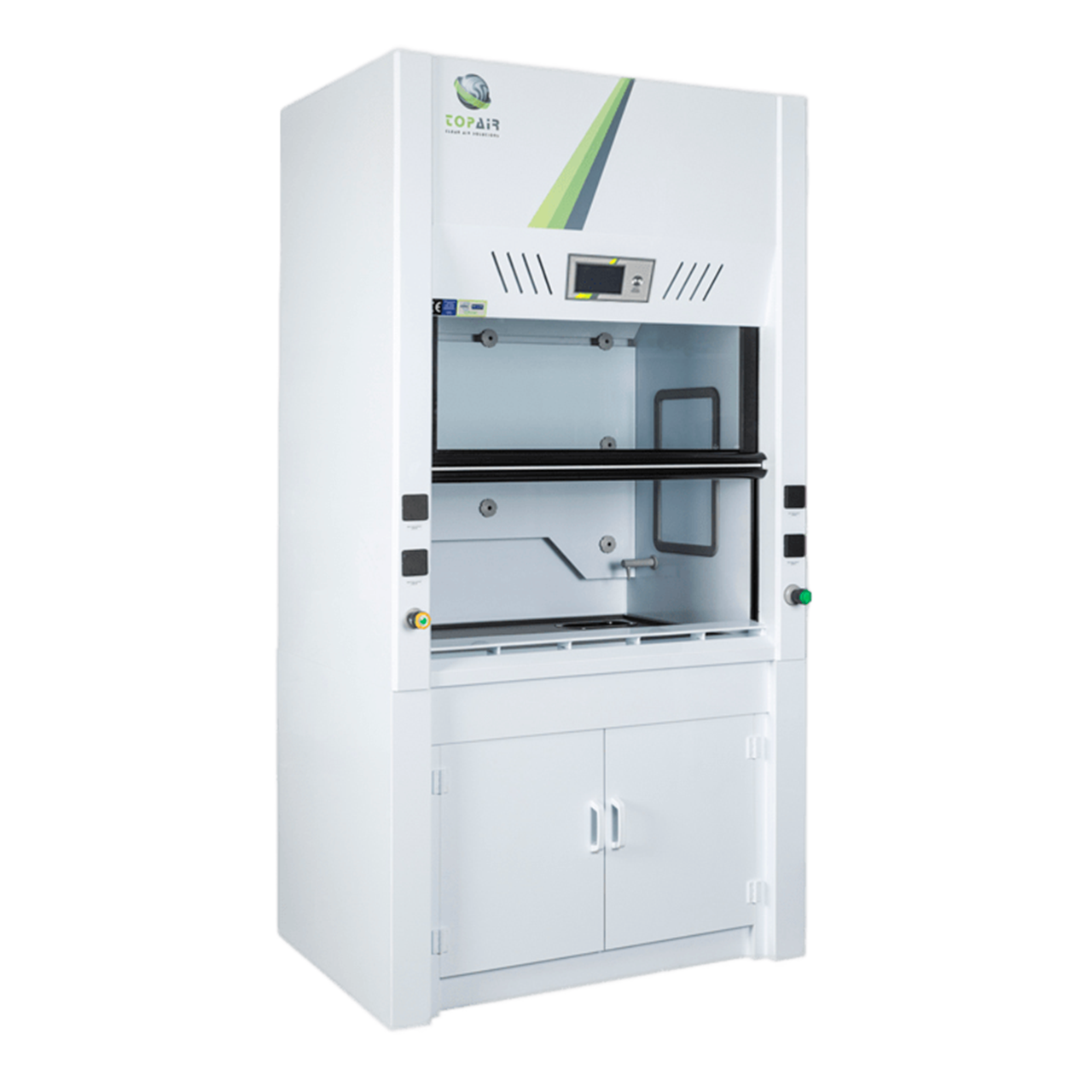

PERCHLORIC ACID FUME HOOD
TopAir’s Polypropylene Acid Fume Hood – Washdown includes water sprinklers and an angular wall that allows complete and effective rinsing of the hood’s back space, while collecting residue of mineral accumulation.
The hood is designed for work with perchloric acid; rinses after each session are recommended.
The Polypropylene acid fume hoods are made of high-quality non-corrosive polypropylene with excellent chemical resistance.
The fume hoods protect laboratory staff from noxious fumes released by acids, dangerous gas and organic solvents- materials and acids which regular steel hoods may not withstand.
The acid hoods are designed for work with heavy chemicals, have been independently tested, and EN-14175 / CE / ASHRAE 110-1995 certified.
Show all
Features
PERCHLORIC ACID FUME HOOD
Models
| SPEC/MODEL | FH-120-WD | FH-150-WD | FH-180-WD | FH-200-WD | FH-250-WD |
|---|---|---|---|---|---|
| External Dimensions W x D x H |
1200 x 980 x 2370 mm 47.3x 38.6 x 93.3” |
1500 x 980 x 2370 mm 59 x 38.6 x 93.3” |
1800 x 980 x 2370 mm 70.9 x 38.6 x 93.3” |
2000 x 980 x 2370 mm 78.7 x 38.6 x 93.3” |
2500 x 980 x 2370 mm 98.4 x 38.6 x 93.3″ |
| Workspace (W x D x H) |
1000 x 630 x 1000 mm 39.4 x 24.8 x 39.4” |
1300 x 630 x 1000 mm 51.2 x 24.8 x 39.4” |
1600 x 630 x 1000 mm 63 x 24.8 x 39.4” |
1800 x 630 x 1000 mm 70.8 x 24.8 x 39.4” |
2300 x 630 x 1000 mm 90.5 x 24.8 x 39.4″ |
| Front Sash Max Opening | 720 mm / 28.3″ | 720 mm / 28.3″ | 720 mm / 28.3″ | 720 mm / 28.3″ | 720 mm / 28.3″ |
| Production / Test Standard |
EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 |
| Air Velocity | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 |
| Hood Material | White Polypropylene | White Polypropylene | White Polypropylene | White Polypropylene | White Polypropylene |
| Work Table Material | HPL/ Ceramic / Epoxy / PP / Stainless steel | HPL/ Ceramic / Epoxy / PP / Stainless steel | HPL/ Ceramic / Epoxy / PP / Stainless steel | HPL/ Ceramic / Epoxy / PP / Stainless steel | HPL/ Ceramic / Epoxy / PP / Stainless steel |
| Optional Control System | VAV system with 9″ color touch screen | VAV system with 9″ color touch screen | VAV system with 9″ color touch screen | VAV system with 9″ color touch screen | VAV system with 9″ color touch screen |
| Optional | Water tap/ gas tap / vacuum tap/ pp sink | Water tap/ gas tap / vacuum tap/ pp sink | Water tap/ gas tap / vacuum tap/ pp sink | Water tap/ gas tap / vacuum tap/ pp sink | Water tap/ gas tap / vacuum tap/ pp sink |
| Power Supply | 110/220V, 50/60 Hz, Includes a single phase power supply. A three-phase power supply can be specially ordered. |
110/220V, 50/60 Hz, Includes a single phase power supply. A three-phase power supply can be specially ordered. |
110/220V, 50/60 Hz, Includes a single phase power supply. A three-phase power supply can be specially ordered. |
110/220V, 50/60 Hz, Includes a single phase power supply. A three-phase power supply can be specially ordered. |
110/220V, 50/60 Hz, Includes a single phase power supply. A three-phase power supply can be specially ordered. |
| Illumination | 800 LUX LED lights | 800 LUX LED lights | 800 LUX LED lights | 800 LUX LED lights | 800 LUX LED lights |
ACCESSORIES
| Model | Description |
|---|---|
| FH-FAN-1100-300 | Centrifugal fan 1.1 KW 2800 RPM/IE3 DIA 300 mm |
| FH-FAN-750 | Centrifugal fan 0.75 kw 2800 RPM/IE3 |
| FH-GTAP | Gas tap |
| FH-KIT | Kit for Fume Hood includes: 1 water tap, 1 gas tap, 1 cup sink and 4 power outlets |
| FH-PP-SINK | Polypropylene cup sink |
| FH-SINK-3040 | Polypropylene sink 30 x 40 |
| FH-SOCKET | Power outlet installed |
| FH-VAV | Air flow monitor with audible alarm VAV+VFD installed, including 7’’ LCD touch screen controller |
| FH-VAV-4.3 | Air flow monitor with audible alarm VAV+VFD installed, including 4.3’’ LCD touch screen controller |
| FH-WTAP | Water tap |
