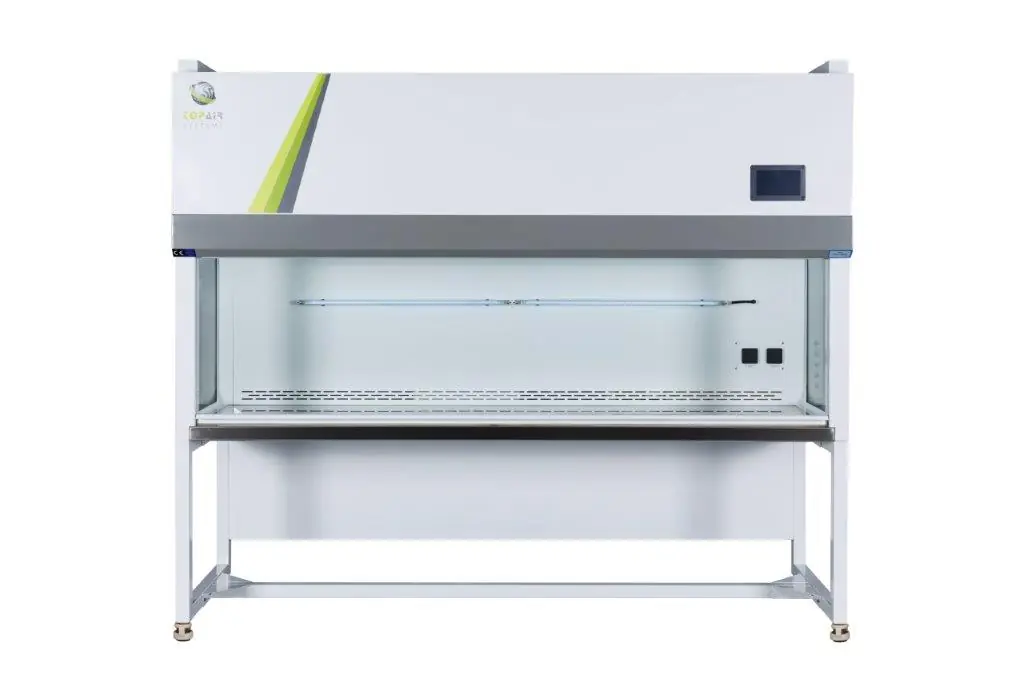

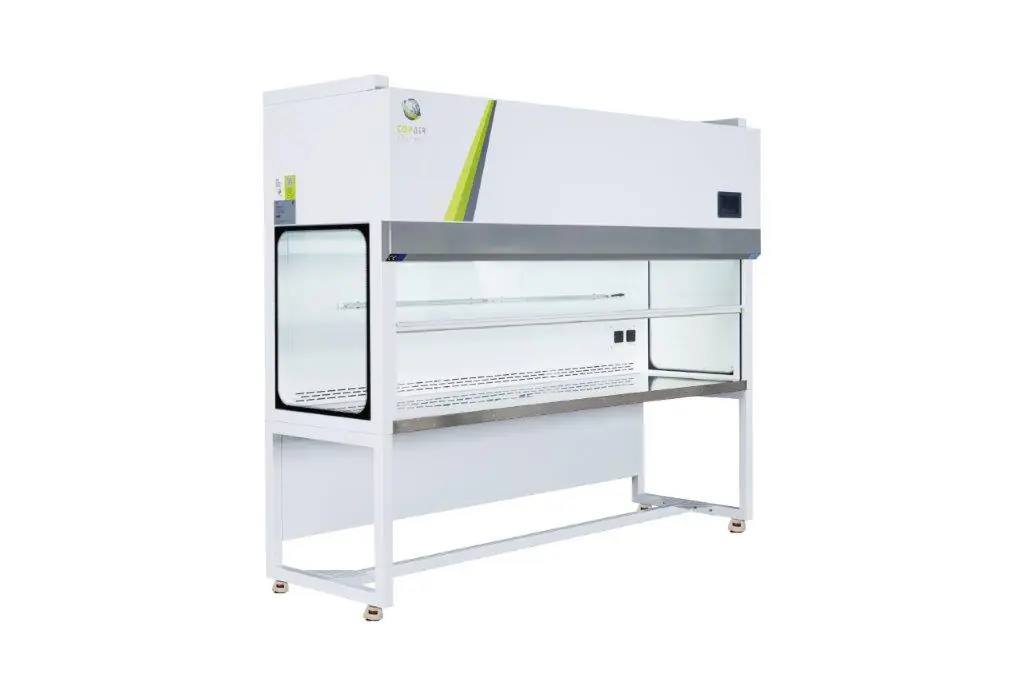

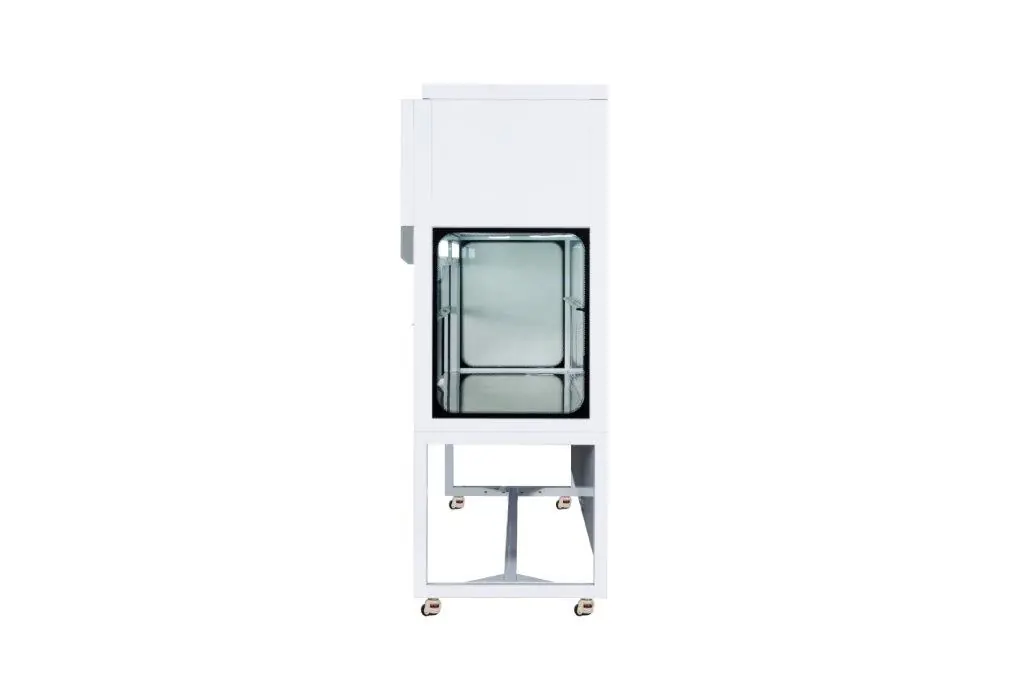

Metal Vertical Laminar Clean Bench

Metal Vertical Laminar Clean Bench

TopAir provides high quality, safe Vertical Laminar Clean Benches. The clean benches suck air from the room or hall space, transfer the air through a HEPA filter using a fan, and then clean the bench area with filtered air.

In Vertical Benches, the filtered air is channeled downwards through a filter installed at the top of the bench.

All components are produced by leading global companies such as AAF USA.

The Clean Bench complies with production/test standard USA Federal Standard 209E / ISO 1- 144641 and is customized to the specifications of each client.

Clean benches are designed to supply a clean controlled work environment meeting Class 100/ISO5 cleanliness standard, resembling a clean room, with the additional advantages of portability and small dimensions.

Clean benches provide a high quality alternative to a clean room at a much lower cost and without massive construction.

CLICK TO REQUEST A QUOTE
  • Vertical air stream producing clean air at ISO5/ CLASS100 or ISO4/Class10 standards
  • Massive epoxy-coated and oven tempered metal structure assures stability, preventing bench movements throughout sensitive operations.
  • User-friendly digital control system
  • Work surface made of 304 stainless steel
  • Side windows made of tempered glass
  • High quality, quiet fan
  • Noise level < 58 DBA
  • Universal electrical outlet
  • Innovative, advanced design
  • Variety of sizes and materials; optional stand
  • Eco-friendly, cost-effective LED lighting
  • Compliance with production/test standard: US Federal Standard 209E / ISO-14644-1
Spec/Model HC-V090 HC-V120 HC-V150 HC-V180
Outer Dimensions W x D x H 1000 x 760 x 1250 mm

39.3 x 30 x 49.2"
1300 x 760 x 1250 mm

51.1 x 30 x 49.2"
1600 x 760 x 1250 mm

63 x 30 x 49.2"
1900 x 760 x 1250 mm

74.8 x 30 x 49.2"
Workspace (W x D x H) 900 x 660 x 750 mm

35.4 x 26 x 29.5"
1200 x 660 x 750 mm

47.2 x 26 x 29.5"
1500 x 660 x 750 mm

59 x 26 x 29.5"
1800 x 660 x 750 mm

70.8 x 26 x 29.5"
Production / test Standard USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE
Air Velocity m/s 0.4 m/s, 80 FPM 0.4 m/s, 80 FPM 0.4 m/s, 80 FPM 0.4 m/s, 80 FPM
Cleanliness in Workstation Class-100 (FS 209E) ISO 5, ISO-14644-1 Class-100 (FS 209E) ISO 5, ISO-14644-1 Class-100 (FS 209E) ISO 5, ISO-14644-1 Class-100 (FS 209E) ISO 5, ISO-14644-1
Cabinet Material High grade cold rolled steel and surface is static powder coated High grade cold rolled steel and surface is static powder coated High grade cold rolled steel and surface is static powder coated High grade cold rolled steel and surface is static powder coated
Work Table Material Stainless steel SUS 304 Stainless steel SUS 304 Stainless steel SUS 304 Stainless steel SUS 304
Noise <58dB <58dB <60dB <62dB
Test Location (Tested 20 cm from the work table, 1.2m above ground) (Tested 20 cm from the work table, 1.2m above ground) (Tested 20 cm from the work table, 1.2m above ground) (Tested 20 cm from the work table, 1.2m above ground)
Power Supply Options 110 / 220V, 50/60 Hz, Single phase 110 / 220V, 50/60 Hz, Single phase 110 / 220V 50/60 Hz, Single phase 110 / 220V 50/60 Hz, Single phase
Illumination 800 LUX 800 LUX 800 LUX 800 LUX
Filter HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter) HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter)
HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter)
HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter)
Spec/Model HC-090 HC-120 HC-160 HC-180
Stand HC-090-ST

HC-120-ST HC-150-ST HC-180-ST
Combined UV light and front sash
HC-090-UV-FS
HC-120-UV-FS HC-150-UV-FS HC-180-UV-FS
Separated "floating" table
HC-090-VB HC-120-VB HC-150-VB HC-180-VB
